High precision intelligent digital pressure gauge
Product Detail

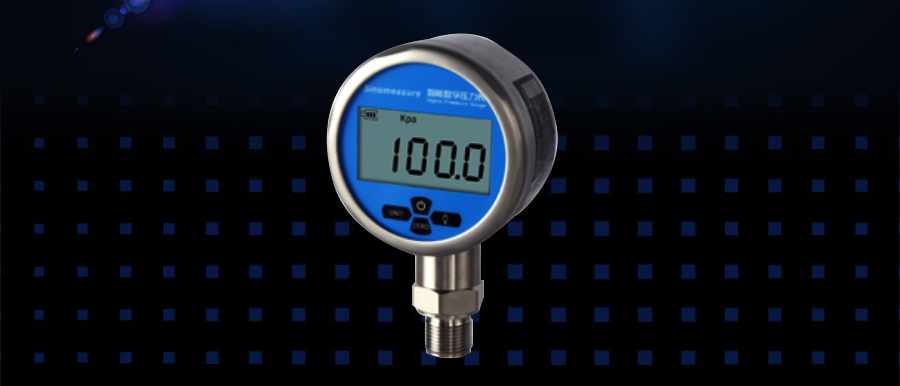

High precision intelligent digital pressure gauge

The digital display pressure gauge adopts the battery longterm power supply mode, does not need the external power supply, the installation use is convenient. It has overcome the shortcomings of the pointer type pressure gauge, such as low accuracy, poor reliability and high damage rate. Especially in corrosion, vibration and other places of use, more remarkable performance.


product nameQuantity pressure gauge SIN-Y290
Pressure range-0.1.. + 60MPa
Power supply3V(two no.7 batteries)
output signal4-20MA、1-5、 0-10V
Precision grade0.4% (default), 0.2% (customized)
Overload level< 40MPa   150% ; ≥40MPa   120%
Pressure typeSurface pressure, absolute pressure, negative pressure
environment temperature-20..70℃


Big screen; Large screen LCD display, reading intuitive clear, adapt to the environment temperature wide.

High precision; Advanced microprocessor technology, imported measurement and control chip, stable performance and high precision.

Low power consumption; Ultra-low power consumption intelligent control, electricity, pool continuous use for two to three years.

Corrosion resistance; Integral stainless steel seal structure, suitable for corrosive medium environment.

Resistance to vibration; Device anti-vibration treatment, fastening assembly, normal use in the vibration site;

Technical reference of digital pressure gauge

Measuring range; -0.1 ~ 60MPa range can be segmented selection, pressure unit MPa, KPa optional

Overpressure limit; 2.5 times full range

Accuracy grade; 0.4, 0.5, 1.0 FS

Display precision; 4 bit (LCD)

Operating voltage; DC3V battery powered

Sampling time; Factory setting: 2.5 seconds/time (can be set according to user requirements)

Applicable medium; Compatible with ceramic and stainless steel liquids and gases

Medium temperature; - 40 ~ 85 ℃

Ambient temperature; - 20 ~ 60 ℃ - 30 ~ 60 ℃

Mounting thread; M20 1.5 (special installation user requirements)
